CoinEX Spot Futures to MT5 is a practical tool that enables the direct reception of real-time market data from the CoinEX exchange into the MetaTrader 5 platform.

This tool is designed for technical analysis, utilizing CoinEX's official API to provide direct access to real-time information from both the Futures and Spot markets within the MT5 platform.

Specification Table CoinEX Spot & Futures to MT5 Connection Service

The following table reviews the specifications of the expert advisor that connects CoinEX's spot and futures markets to the MetaTrader 5 platform:

CoinEX Spot & Futures to MT5 at a Glance

The connection service is built using the HTTP protocol and WebRequest capability.

It pulls real-time data such as prices, trading volume, order statuses, and other market info directly from CoinEX servers and displays them as symbols within the MT5 terminal.

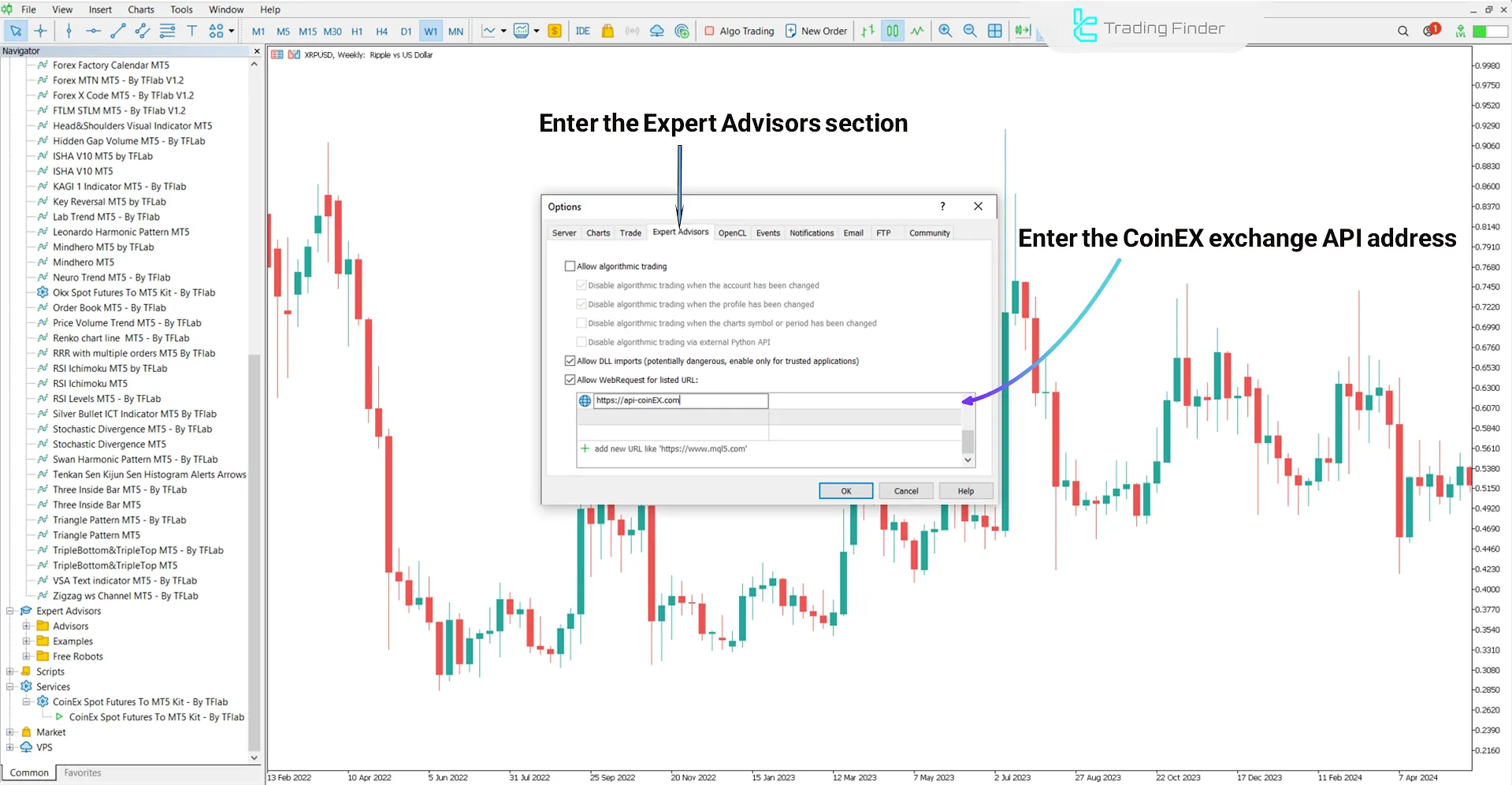

How to Enable WebRequest for CoinEX API in MT5

1. From the top toolbar in MetaTrader 5, go to "Tools" → "Options," then open the "Expert Advisors" tab
2. Check the box "Allow WebRequest for listed URL"
3. Add the following URL: https://api.coinEX.com, as shown in the image
4. Finally, click "OK"

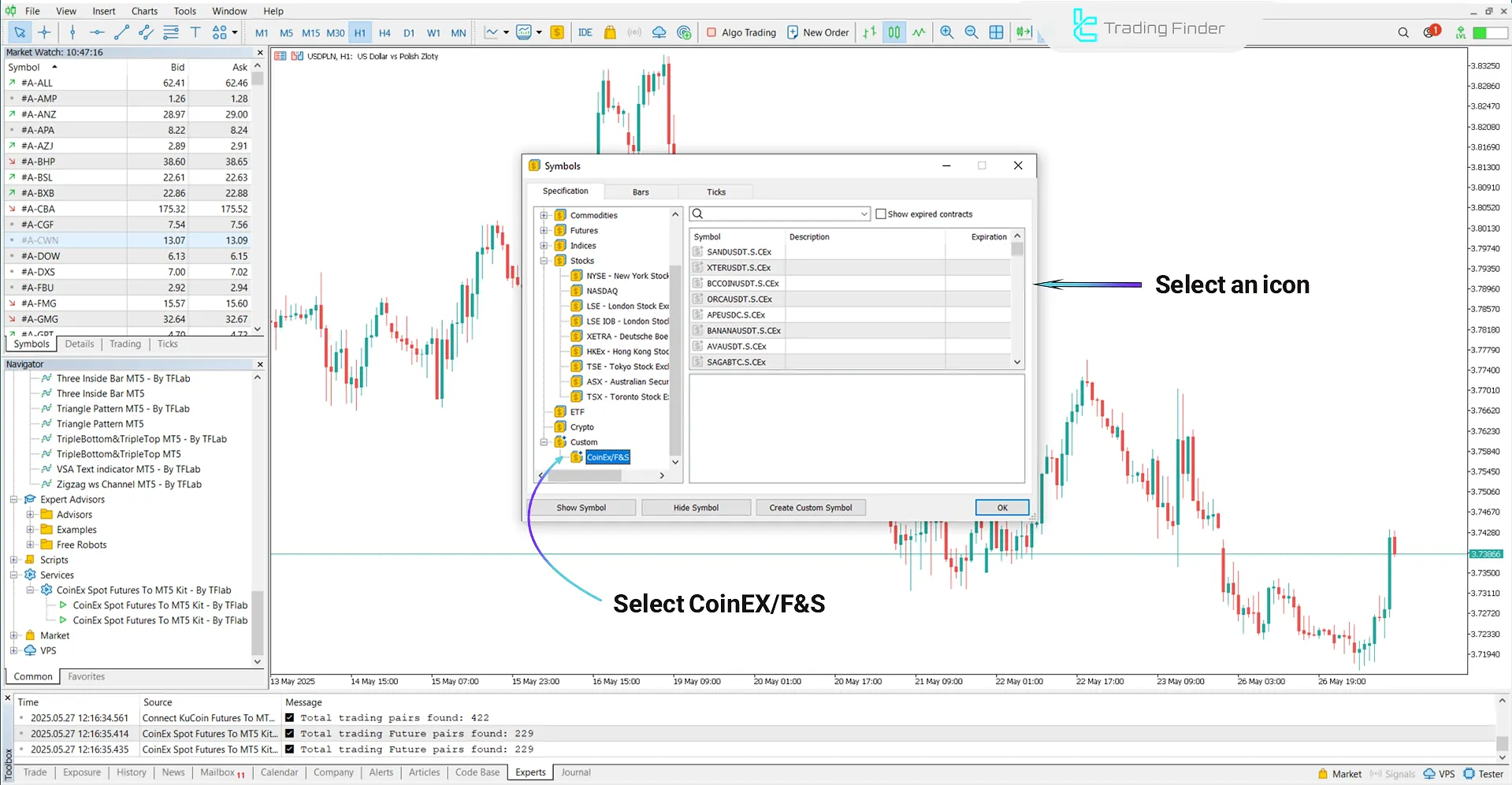

Adding CoinEX Symbols to MT5 for Technical Analysis

To use MetaTrader indicators on CoinEX cryptocurrencies in both Spot and Futures markets, follow these steps to add symbols:

1. Press "Ctrl+M" to open the Market Watch window
2. Right-click inside the window and select "Symbols"
3. In the "Custom" section, open the "CoinEX" group and choose your desired symbol
4. Click the symbol, then press "Show" to display it in the Market Watch list

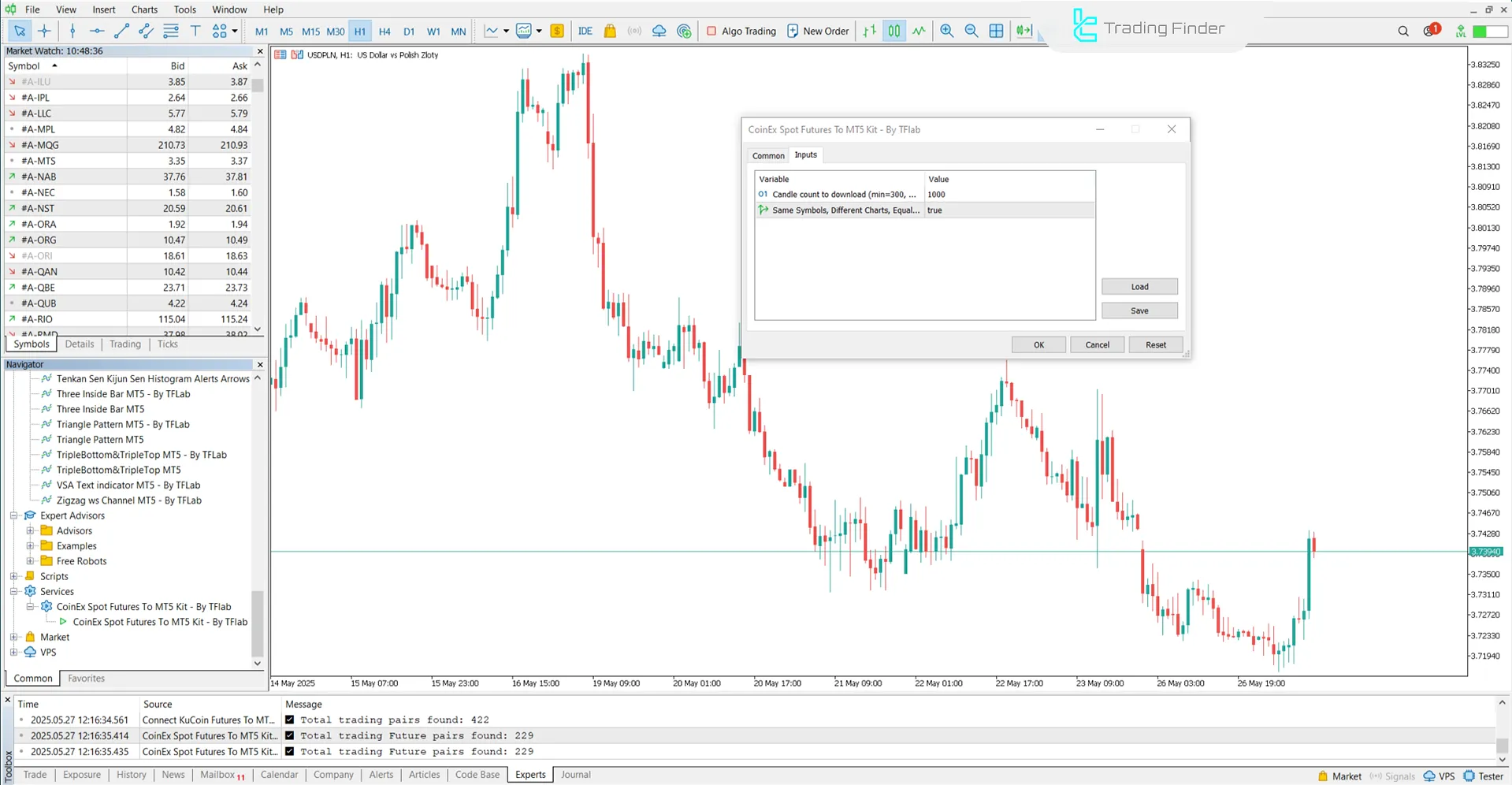

Settings Panel of CoinEX Spot & Futures to MT5 Expert Advisor

The image below shows the configuration panel for linking CoinEX Spot and Futures markets to MetaTrader 5:

• Candle count to download (min=300): Number of candles to load on the chart
• Same Symbols, Different Charts, Equal: Synchronize data for identical symbols across different charts

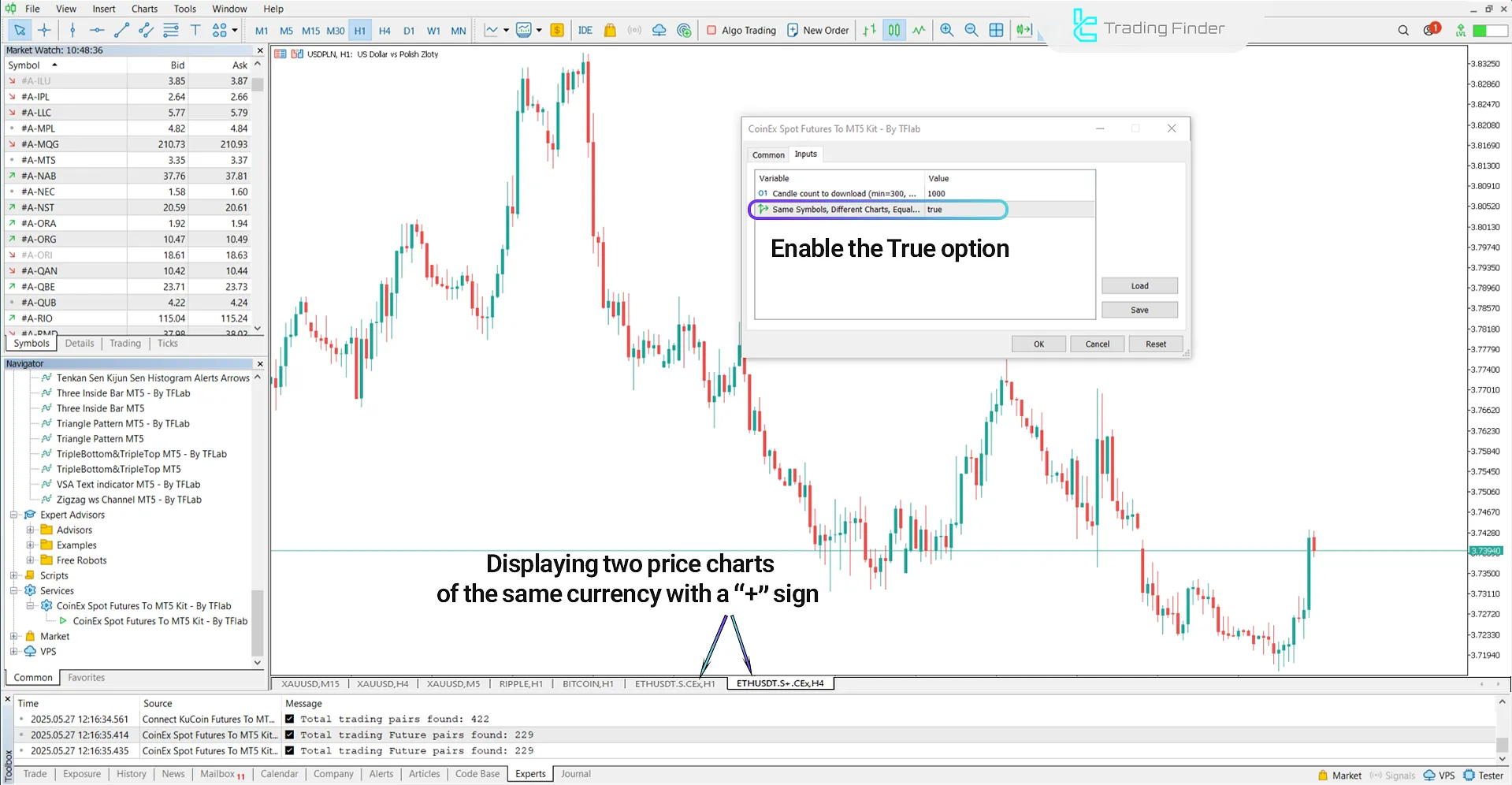

Note: When the "Same Symbols, Different Charts, Equal" feature is enabled, opening multiple charts for a symbol like ETH/USDT will automatically append markers such as “+” or “++” to the end of each chart’s name.

In this setup, each chart retrieves its data independently from the server based on its specific timeframe, with no need to rely on data from other timeframes.

Conclusion

The Connect CoinEX Spot and Futures to MT5 tool enables seamless market analysis by directly receiving cryptocurrency data from CoinEX into MetaTrader 5.

This non-trading expert advisor uses the HTTP protocol and the exchange's API to fetch accurate, real-time market data from both the Spot and Futures markets, displaying it as analyzable symbols within the MT5 environment.
